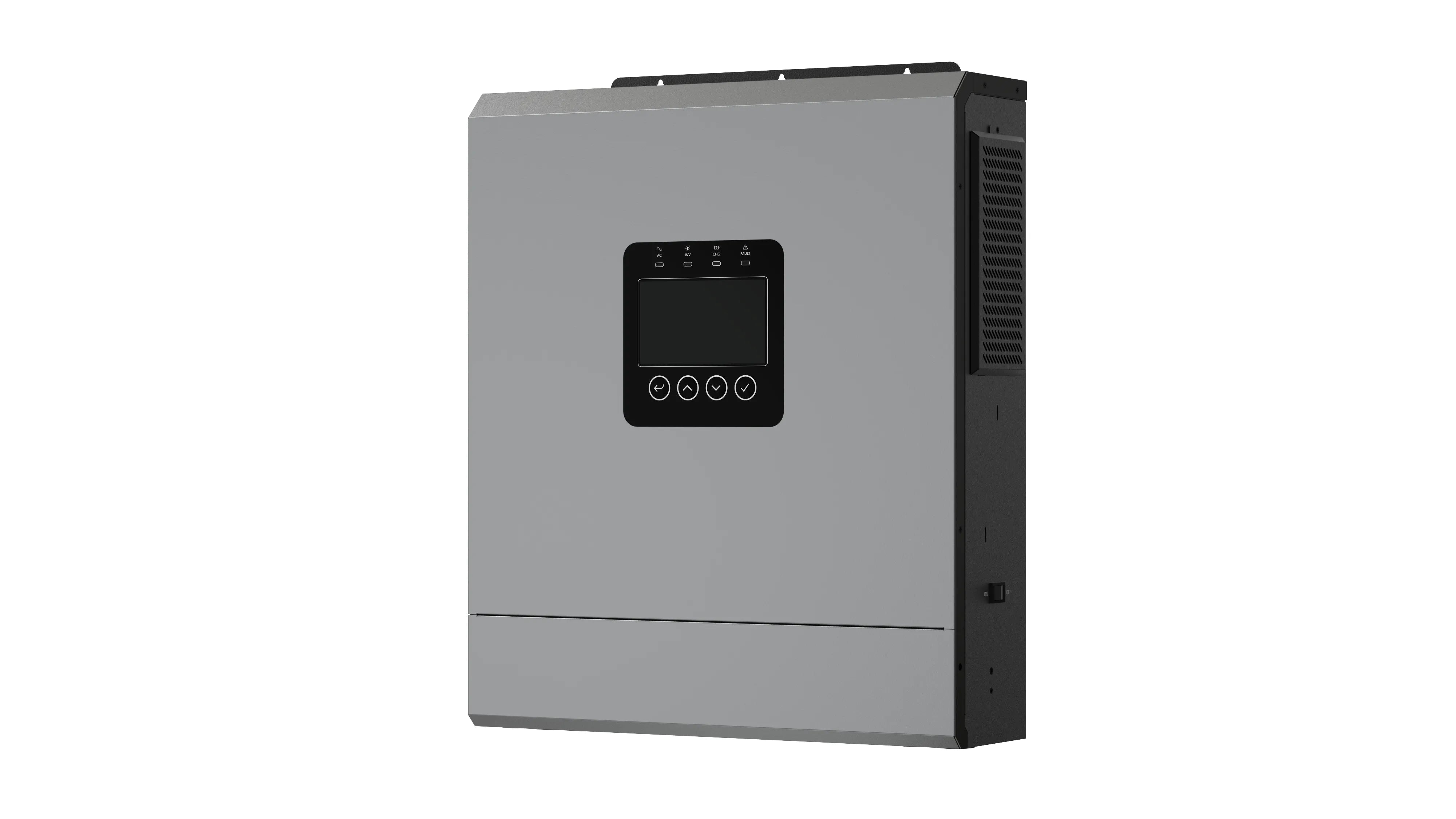

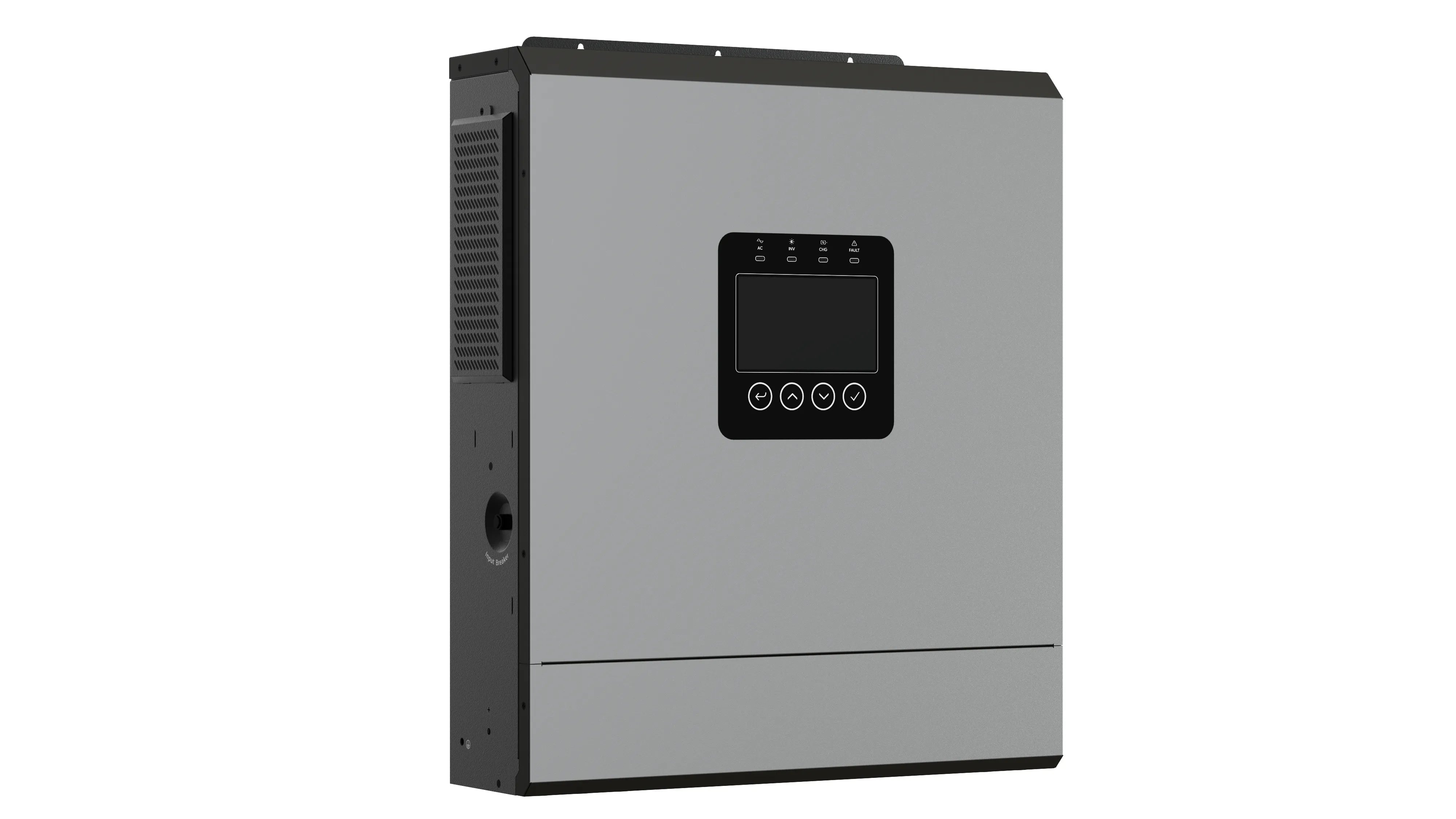

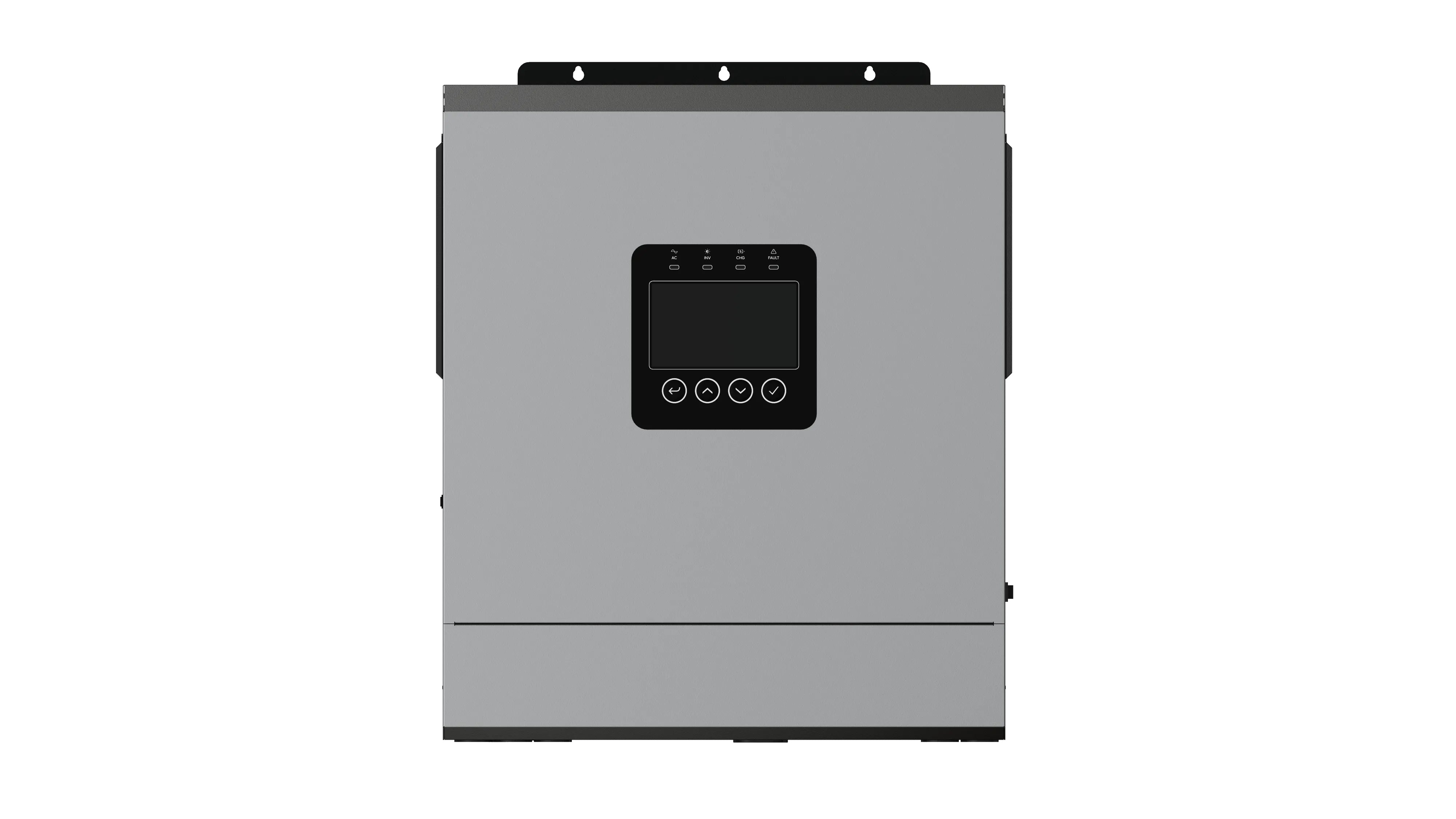

BKHB-48120
12kW Solar Inverter
✓ 12kW High-Power Inverter Output
✓ Dual MPPT up to 15kW PV
✓ Wide PV Voltage 60–450V
✓ 160A Fast Battery Charging
✓ Built-in WiFi & BMS Communication
✓ Dual AC Output Design
12kW high-power inverter designed for residential and commercial energy systems.
Dual MPPT design supports up to 15kW solar input for higher energy harvesting.
Wide PV voltage range from 60V to 450V increases system compatibility.
160A PV and AC charging enables fast and efficient battery replenishment.
Compatible with lithium, lead-acid, and gel batteries for flexible deployment.
Built-in WiFi and BMS communication allow smart monitoring and system control.
Dual AC output ensures stable power distribution for critical loads.
Model:BKHB-48120
Inverter Rated Output Power: 12kW
Battery Voltage: 48V
MPPT Configuration:Using one MPPT: 27A / 9kW；Using two MPPTs: 22.5A per MPPT, 15kW total
MPPT Voltage Range: 60–450V
Maximum PV Open-Circuit Voltage: 500V
PV/AC/Maximum Charging Current: 160A
Supported Battery Types: Lithium battery, lead-acid battery, gel battery
AC & PV Activation: AC and PV can operate simultaneously
Output Configuration: Dual AC output
Communication Interfaces: USB + BMS (RS485 + CAN)
WiFi: Built-in WiFi module
Operating Temperature: -10°C to 60°C
Warranty: 2 years
Home Energy Guardian
It's more than powering appliances, it's safeguarding your family's peace of
mind. The PowerGuard Pro intelligent inverter delivers up to 12000W
continuous off-grid power, automatically switching during outages to protect
your household energy security
Product Specifications
Inverter output power
12KW
Battery voltage
48V
MPPT input current and power
27A/9000W
PV/AC/Maximum charging current
160A
Communication Mode
CAN/RS485/RS232
Supported battery types
Lithium battery, lead-acid battery, gel battery
