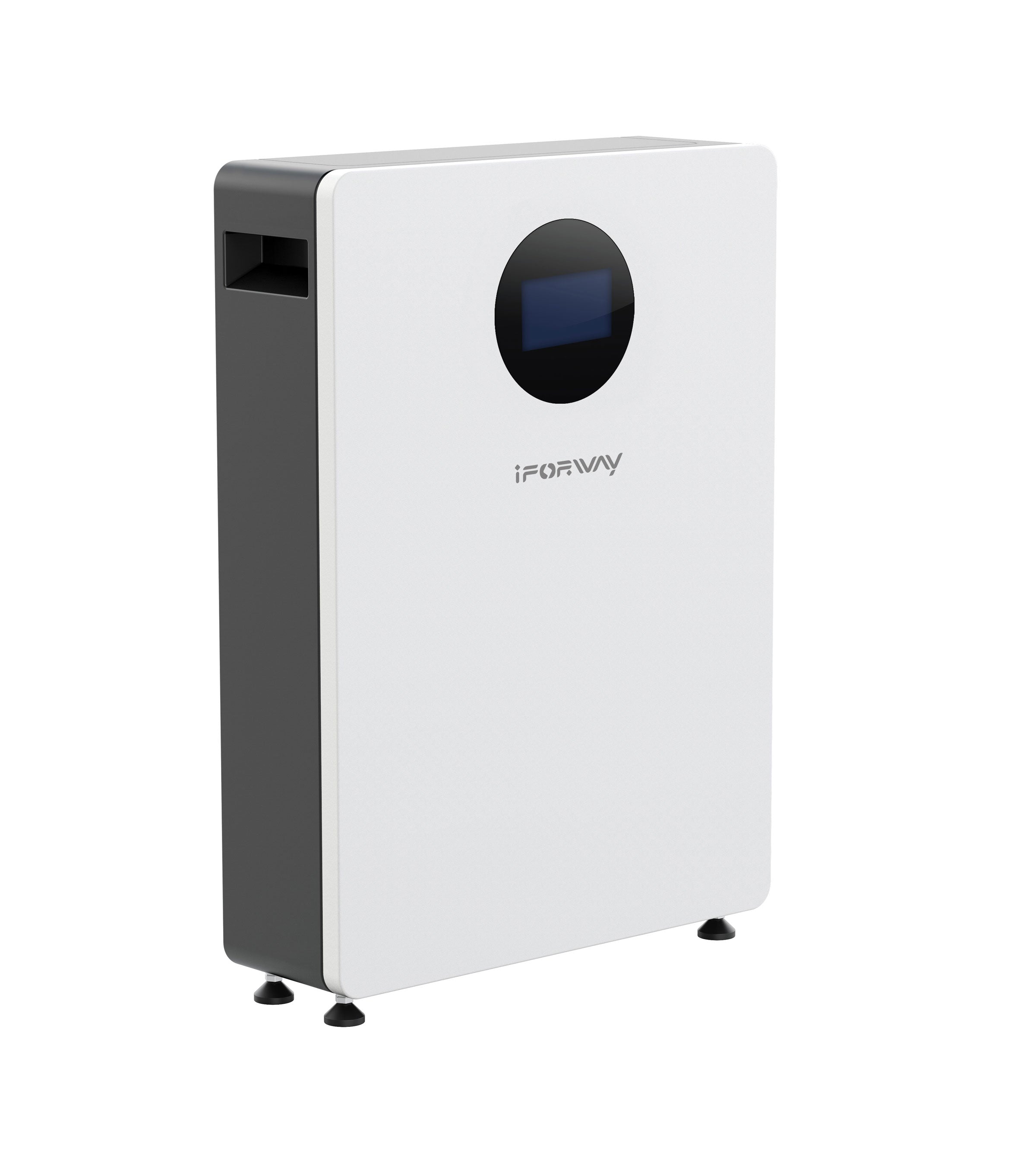

BKES-48100
51.2V 100Ah LiFePO₄ Storage
✓ 5120Wh High Energy Capacity
✓ 2560W Charge / 5120W Discharge
✓ Color Touchscreen Display
✓ Safe LiFePO₄ Battery Cells
✓ Up to 15 Units Parallel Expandable
✓ Floor / Wall Mount Installation
- Real-Time Color Touchscreen – monitor voltage, current, and power instantly.
High Power Output – 5120W discharge handles heavy loads effortlessly.
Long Cycle Life – over 6000 cycles at 90% DOD.
Flexible Scalability – up to 15 batteries in parallel.
Wide Operating Range – −20°C to 60°C for home or commercial use.
Safe and Certified – CE and UN38.3 certified with 5-year warranty.
Model:BKES-48100
Battery Energy: 5120Wh
Nominal Voltage / Capacity: 51.2V / 100Ah
Charge / Discharge Power: 2560W / 5120W
Max Discharge Current: 100A
Short Circuit Current: 350A
Cell Technology: LiFePO₄ (Lithium Iron Phosphate)
Cycle Life: ≥6000 cycles @ 90% DOD
Display: Color Touchscreen
Communication: RS232 / RS485 / CAN
Installation: Floor Stand or Wall Mount
Operating Temperature: −20°C to 60°C
Humidity: <95% RH
Scalability: Up to 15 batteries in parallel
Warranty: 5 Years
IP Rating: IP20
Certifications: CE, UN38.3
Home Energy Guardian
Storing 5.12kWh of clean, reliable energy, PowerGuard Pro stands ready around the clock to safeguard your home’s power supply.
Even when the grid goes down, you stay powered up—embracing a truly sustainable, low-carbon lifestyle.
Product Specifications
Nominal Voltage
51.2 V
Nominal Capcity
100 Ah
Norminal Energy
5120 Wh
Charge Voltage
56.16V
Maximum Charge Curren
50A
Maximum Discharge current
100A
Communication Mode
CAN/RS485/RS232
Dimension
440x138x600 mm
Weight
47.3 kg
Frequently Asked Questions
Email：inquiry@iforway.com
Mobile/WhatsApp：+86 13828849396
Of course! We offer OEM and ODM services, and welcome to iFORWAY to customize your energy storage solution!
We use lithium iron phosphate batteries, guaranteeing over 3000 cycles.
